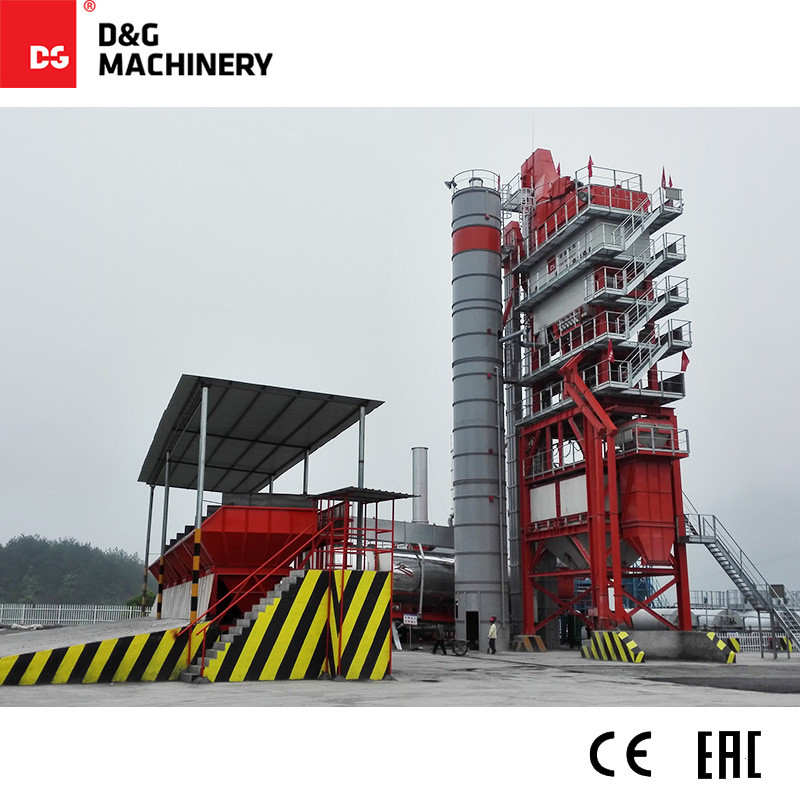

D&G Standard Series DG3000T250 240t/h asphalt mixing plant

Kategori

D&G Standard Series DG3000T250 240t/h asphalt mixing plant

Name: D&G Standard Series DG3000T250 240t/h asphalt mixing plant
Brand: D&G Asphalt Plant Manufacturer
SKU: 18262923
Rating: 4.75 (10 reviews)

Kategori	Stone Crushing Plant
Merek	D&G Asphalt Plant Manufacturer
Model	DG3000T250
Rated capacity	240T/H
installed power	Appr.603KW(standard configuration)
Condition	New
Color	Accodrding to Customer' request
Shipping	Sea
Warranty	1 Year
Applicable Industrius	Road Construction
Local Service	Provide
Place of Origin	Hebei,China
Capacity	60-400t/h
pelabuhan	TIANJIN
cara pembayaran	L/C, T/T
Waktu Update	2024/10/21

Kontak Sekarang

Favorit

Informasi Detail

TECHNICAL DATA

MODEL		DG3000T250
Rated Production Capacity		240 t/h
Cold Feeder Bin	Number × Volume	5 × 18 m³
Dryer Drum	Diameter Ø	ø 2.5 m
	Length	9 m
	Fuel Type	Diesel / Heavy Oil / Nature Gas / LPG / Coal
	Drying Capacity
	– Moisture Content 3%	300 t/h
	– Moisture Content 5%	240 t/h
Bag House	Dust Filtering Method	(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Main Tower	Screening	5 / 6
	Screening Area	38.4 m²
	Hot Bin Quantity	5+1 / 6+1
	Hot Bin Overall Volume	45 m³
	Aggregates Weighing	3000 kg
	Filler Weighing	400 kg
	Bitumen Weighing	400 kg
	Mixing Power	2 × 45 kW
	Mixing Capacity	3300 kg
	Filler Scaling & Feeding	Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design.
	Bitumen Scaling & Feeding	Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
	Mixing	2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer.
	Hot Mix Storage Bin Type	By-Side
	Hot Mix Storage Bin Capacity	35 + 45 m³
Control System		• DGLeap Control System 2.0ontrol System 2.0 • Large Screen Industrial Computer • PLC Touch Screen HMI • Laser Printer • Air-Conditioned Control Cabin
Environment Index		• Dust Density⩽20mg/Nm³ • Ringelmann Blackness Class 1 • Noise in Control Cabin ⩽70dB
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.
