D&G Standard Series DG2500T220 200t/h batch asphalt plant

Kategori

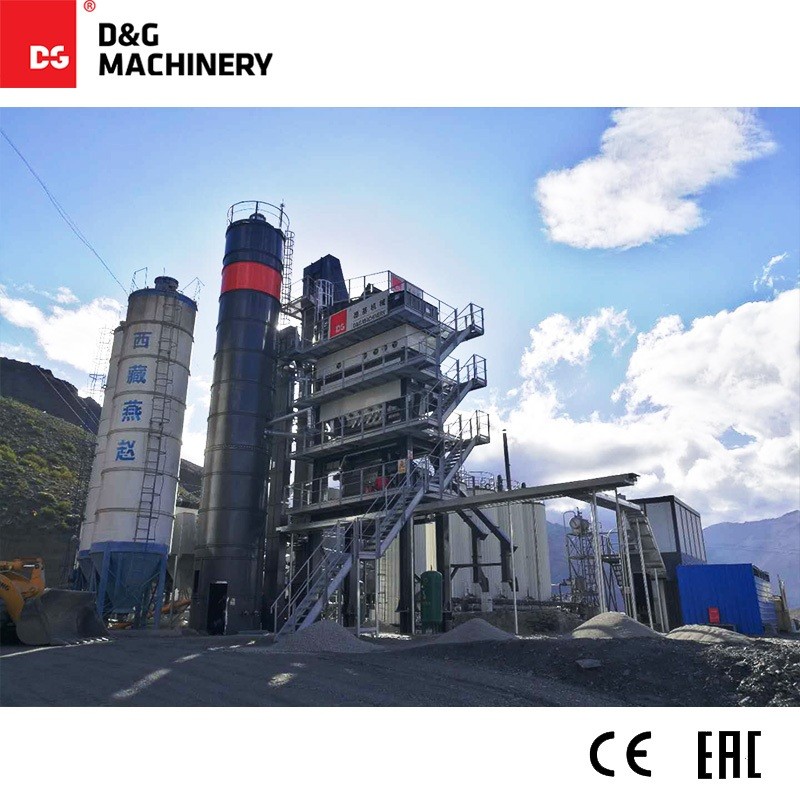

D&G Standard Series DG2500T220 200t/h batch asphalt plant

Name: D&G Standard Series DG2500T220 200t/h batch asphalt plant
Brand: D&G Asphalt Plant Manufacturer
SKU: 18271903
Rating: 4.75 (10 reviews)

Kategori	Stone Crushing Plant
Merek	D&G Asphalt Plant Manufacturer
Model	DG2500T220
Rated capacity	200T/H
Installed power	Appr. 545kW (Standard Configuration)
Model	DG2500T220
Condition	New
Warranty	1 Year
Machinery Test Report	Provide
Place of Origin	Hebei,China
Certification:	Available
pelabuhan	TIANJIN
cara pembayaran	L/C, T/T
Waktu Update	2024/10/21

Kontak Sekarang

Favorit

Informasi Detail

TECHNICAL DATA

MODEL		DG2500T220
Rated Production Capacity		200 t/h

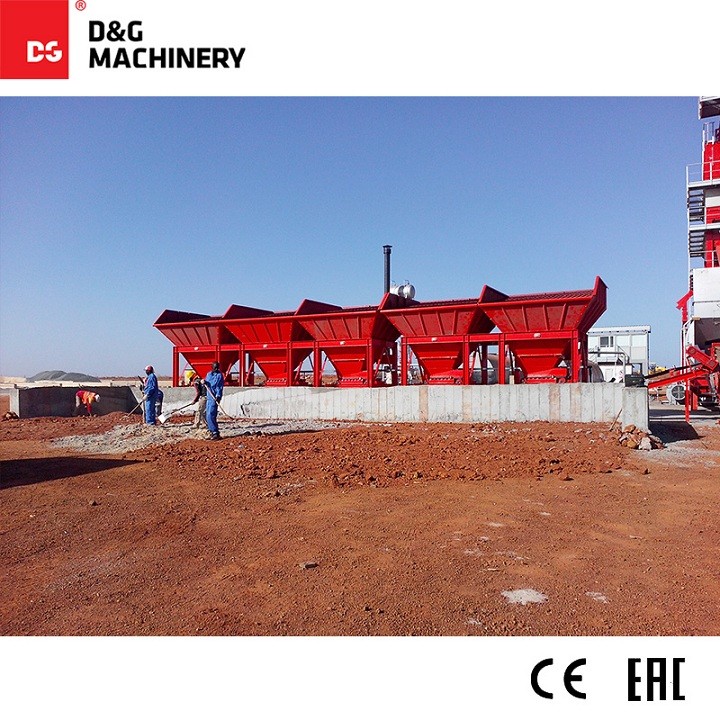

Cold Feeder Bin	Number × Volume	5 × 10 m³
Dryer Drum	Diameter Ø	ø 2.2 m
	Length	9 m
	Fuel Type	Diesel / Heavy Oil / Nature Gas / LPG / Coal
	Drying Capacity
	– Moisture Content 3%	220 t/h
	– Moisture Content 5%	180 t/h

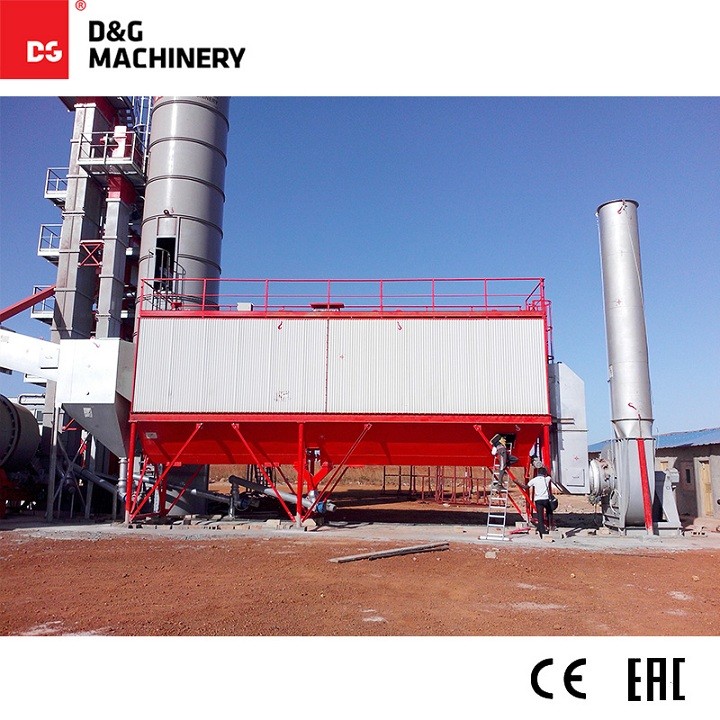

Bag House	Dust Filtering Method	(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Main Tower	Screening	5
	Screening Area	28.1 m²
	Hot Bin Quantity	5 + 1
	Hot Bin Overall Volume	40 m³
	Aggregates Weighing	2500 kg
	Filler Weighing	300 kg
	Bitumen Weighing	300 kg
	Mixing Power	2 × 45 kW
	Mixing Capacity	3000 kg
	Filler Scaling & Feeding	Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design.
	Bitumen Scaling & Feeding	Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
	Mixing	2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer.
	Hot Mix Storage Bin Type	By-Side
	Hot Mix Storage Bin Capacity	35 + 45 m³
Control System		• DGLeap Control System 2.0ontrol System 2.0 • Large Screen Industrial Computer • PLC Touch Screen HMI • Laser Printer • Air-Conditioned Control Cabin
Environment Index		• Dust Density⩽20mg/Nm³ • Ringelmann Blackness Class 1 • Noise in Control Cabin ⩽70dB
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.
